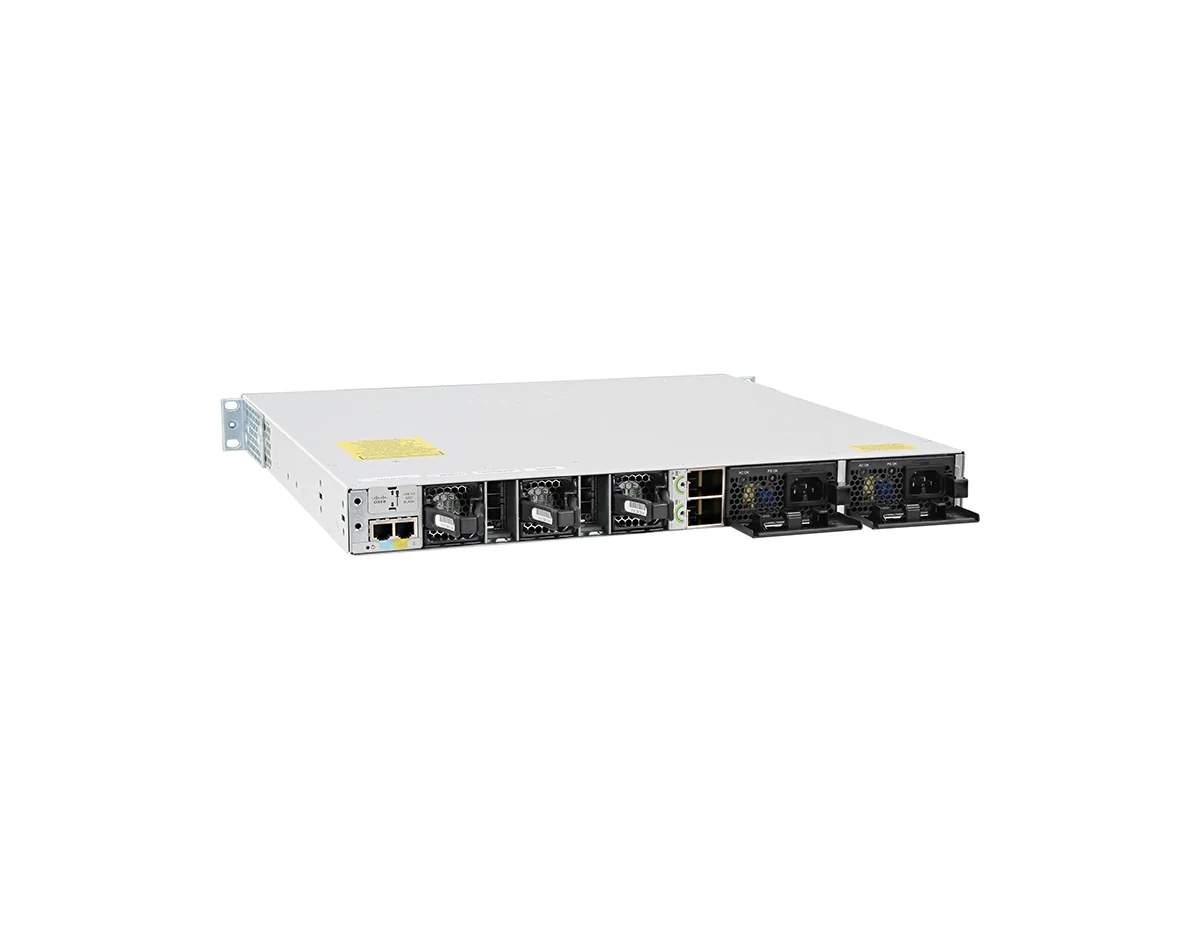

Cisco C9300-24T-A Switch
[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, nonPoE
[properties]
| Properties | C9300-24T-A |
| Description | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Advantage‚ |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 port Data‚ |
| Uplink configuration | Modular Uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-350WAC***‚ |
| Available PoE power with additional secondary power supply |
No PoE‚ |
| Dimensions W/ Default Power Supply | 1.73 x 17.5 x 17.7 |
[/properties]
[specifications]
| Specifications | C9300-24T-A |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 208 Gbps |
| Forwarding rate‚ | 154.76 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support | StackWise-480 |
| Stacking bandwidth support | 480 Gbps |
| Optional Stacking hardware‚ | StackWise Cable |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
[/accesories]
Cisco Catalyst C9300-24T-A Switch
The Cisco Catalyst C9300-24T-A Switch is a high-performance, enterprise-class solution designed to meet the demands of modern network environments. Equipped with 24 Gigabit Ethernet ports, this switch offers reliable and secure connectivity, making it ideal for a wide range of applications in dynamic, data-driven environments. The C9300-24T-A comes with advanced Layer 3 routing capabilities and modular uplinks, providing the flexibility and scalability required for growing network infrastructures.
Key Features:
- 24 x Gigabit Ethernet Ports: Ensures fast and reliable connectivity across all connected devices, supporting seamless network operations.
- Modular Uplinks: Supports a variety of uplink options including 1G, 10G, and 40G, offering flexibility for future network expansions.
- Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining superior network performance.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.
Technical Overview:
- Recommended for: Medium to large enterprises, corporate campuses, and data-driven environments.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-24T-A datasheet.
$3,459.00
