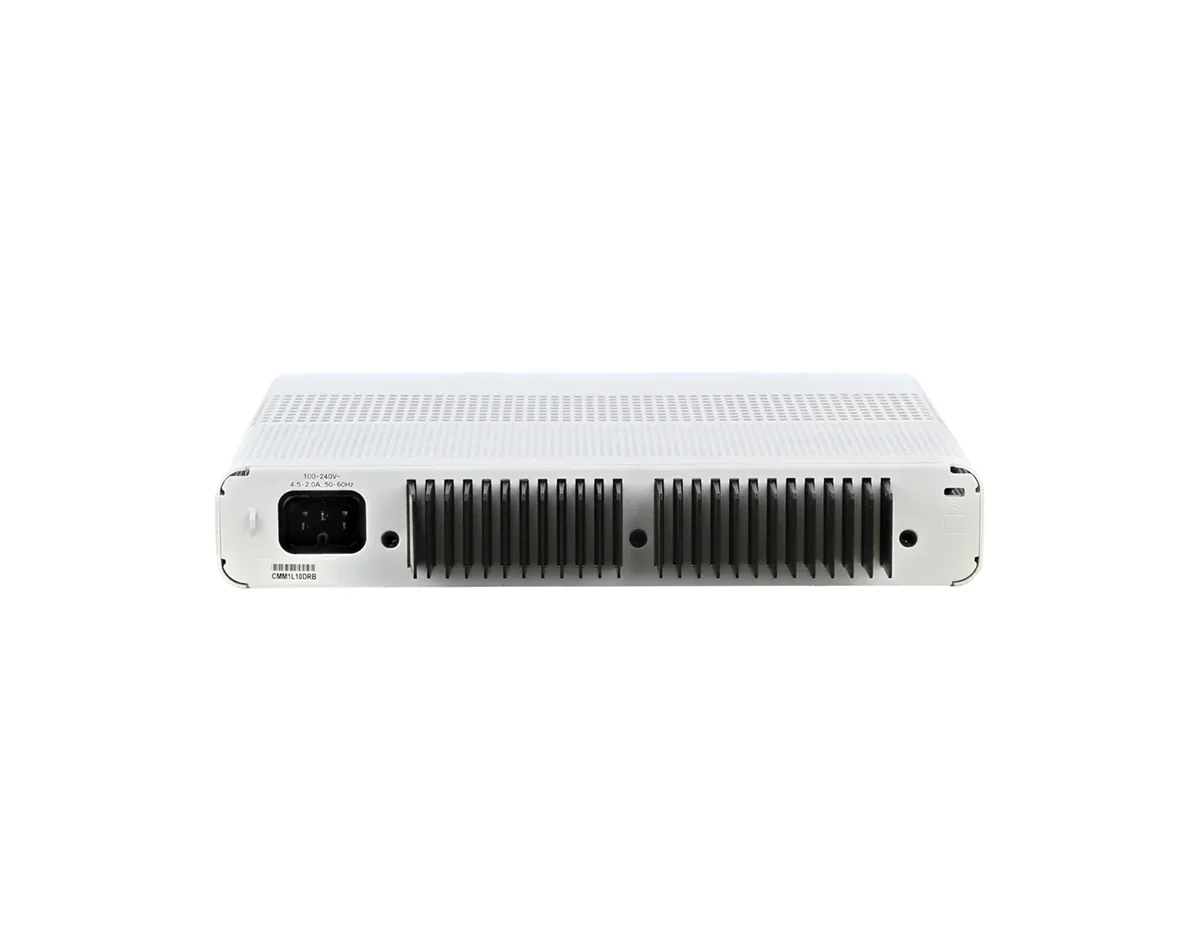

Cisco WS-C3560CX-8XPD-S Switch
[shortdesc]
- Managed, Fanless, 6 x 1G ports + 2 x Multigigabit ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3
[/shortdesc]
[properties]
| Properties | WS-C3560CX-8XPD-S |
| Description |
3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
|
| Product Family | Catalyst 3560 |
| Product Type | Ethernet Switch |
| Ethernet Ports |
6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000
|
| PoE Output Ports | 8 PoE+ |
| Available PoE Power | 240W |
| Uplinks | 2 x 10G SFP+ |
| Default Software | IP Base (IP Services with RTU License) |
| AC/DC input voltage and current | 18-60VDC, 3.25-1.5A |
| Dimensions in. | 1.75 x 10.6 x 10.4 |
[/properties][specifications]
| Specifications | WS-C3560CX-8XPD-S |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| Forwarding Rate | 68.4 mpps |
| Switching Bandwith | 92 Gbps |
| Max VLANs | 1023 |
| VLAN IDs | 4000 |
| Jumbo frames | 9198 bytes |
| MTBF | 528,48 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5 to 35 degree C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5 to 35 degree C |
| Safety |
● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
|
| EMC: emissions |
● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
|
| Environmental | Reduction of Hazardous Substances (RoHS) 6 |
| Telco |
Common Language Equipment Identifier (CLEI) code
|
| Telnet - SSH | Yes |
| TACACS+ | Yes |
[/specifications][accesories]
| PWR-CLP= | Power clip for the 3560-CX and 2960-CX compact switches |
| PWR-ADPT= | AC-DC power adapter for the WS-C3560CX-8PT-S compact switch |
| PWR-ADPT-DC= | DC-DC power adapter for the WS-C3560CX-8PT-S compact switch |
| PWR-ADPT-BRKT= |
Power adapter bracket for the WS-C3560CX-8PT-S compact switch (needs either CMPCT-DIN-MNT= or CMPCT-MGNT-TRAY =) to work
|
| CMPCT-CBLE-GRD= | Cable guard for the 3560-CX and 2960-CX compact switches |
| CMPCT-MGNT-TRAY = | Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches |
| CMPCT-DIN-MNT= | DIN Rail Mount for 3560-CX and 2960-CX compact switches |
| RCKMNT-19-CMPCT= | 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
| RCKMNT-23-CMPCT= | 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
[/accesories]
Cisco Catalyst WS-C3560CX-8XPD-S Switch
The Cisco Catalyst WS-C3560CX-8XPD-S Switch offers robust, high-speed connectivity with 6 Gigabit Ethernet ports and 2 Multigigabit Ethernet PoE+ ports. With 2 SFP+ uplinks, this switch is ideal for networks requiring both gigabit and multigigabit connectivity while ensuring flexibility for future growth. Its compact, fanless design makes it perfect for noise-sensitive environments, and its Power over Ethernet Plus (PoE+) capabilities enable the switch to power connected devices such as IP phones and wireless access points.
Key Features:
- 6 x Gigabit Ethernet Ports and 2 x Multigigabit PoE+ Ports: Supports up to 240W of PoE+ power to connected devices.
- 2 x 10G SFP+ Uplinks: Ensures high-speed fiber connectivity for seamless network scalability.
- Fanless Design: Provides silent operation, making it suitable for office and quiet work environments.
- Layer 3 IP Base: Supports advanced routing protocols, including OSPF, EIGRP, and VRF-Lite for enhanced network management.
- Energy Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
Technical Overview:
- Recommended for: Offices, small to medium-sized businesses, and branch locations.
- Ports: 6 x 10/100/1000 Mbps Gigabit Ethernet ports and 2 x Multigigabit Ethernet PoE+ ports.
- Uplink Modules: 2 x 10G SFP+ uplinks.
- Switching Capacity: 92 Gbps.
- Forwarding Rate: 68.4 Mpps.
- Layer 3 Features: OSPF, EIGRP, and VRF-Lite.
- Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
- Licensing: IP Base.
- Energy Efficiency: Complies with IEEE 802.3az for energy-saving operations.
You can check the related tab for the WS-C3560CX-8XPD-S datasheet.
$2,119.28
Cisco WS-C3560CX-8XPD-S Switch—
$2,119.28
