[shortdesc]

• Managed, Fanless, 8 x 1G ports, 2 x 1G SFP Uplinks, PoE+ (240W), Layer 3

[/shortdesc]

[properties]

Properties	WS-C3560CX-8PC-S
Description	3560-CX Switch 8 GE PoE+, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
Product Family	Catalyst 3560
Product Type	Ethernet Switch
Ethernet Ports	8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports	8 PoE+
Available PoE Power	240W
Uplinks	2 x 1G copper plus 2 x 1G SFP
Default Software	IP Base (IP Services with RTU License)
AC/DC input voltage and current	100-240 VAC, 3.25-1.5A
Dimensions in.	1.75 x 10.6 x 9.4

[/properties] [specifications]

Specifications	WS-C3560CX-8PC-S
DRAM	512 MB
Flash Memory	128 MB
Forwarding Rate	17.9 mpps
Switching Bandwith	32 Gbps
Max VLANs	1023
VLAN IDs	4000
Jumbo frames	9198 bytes
MTBF	569,53
Operating Temperature	-5 to 45 degree C
Up to 5,000 ft (1500 m)
Operating Temperature	-5 to 45 degree C
Up to 10,000 ft (3000 m)
Safety	● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions	● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental	Reduction of Hazardous Substances (RoHS) 6
Telco	Common Language Equipment Identifier (CLEI) code
Telnet - SSH	Yes
TACACS+	Yes

 [/specifications] [accesories]

Part Number	Description
PWR-CLP=	Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD=	Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY =	Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT=	DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT=	19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT=	23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

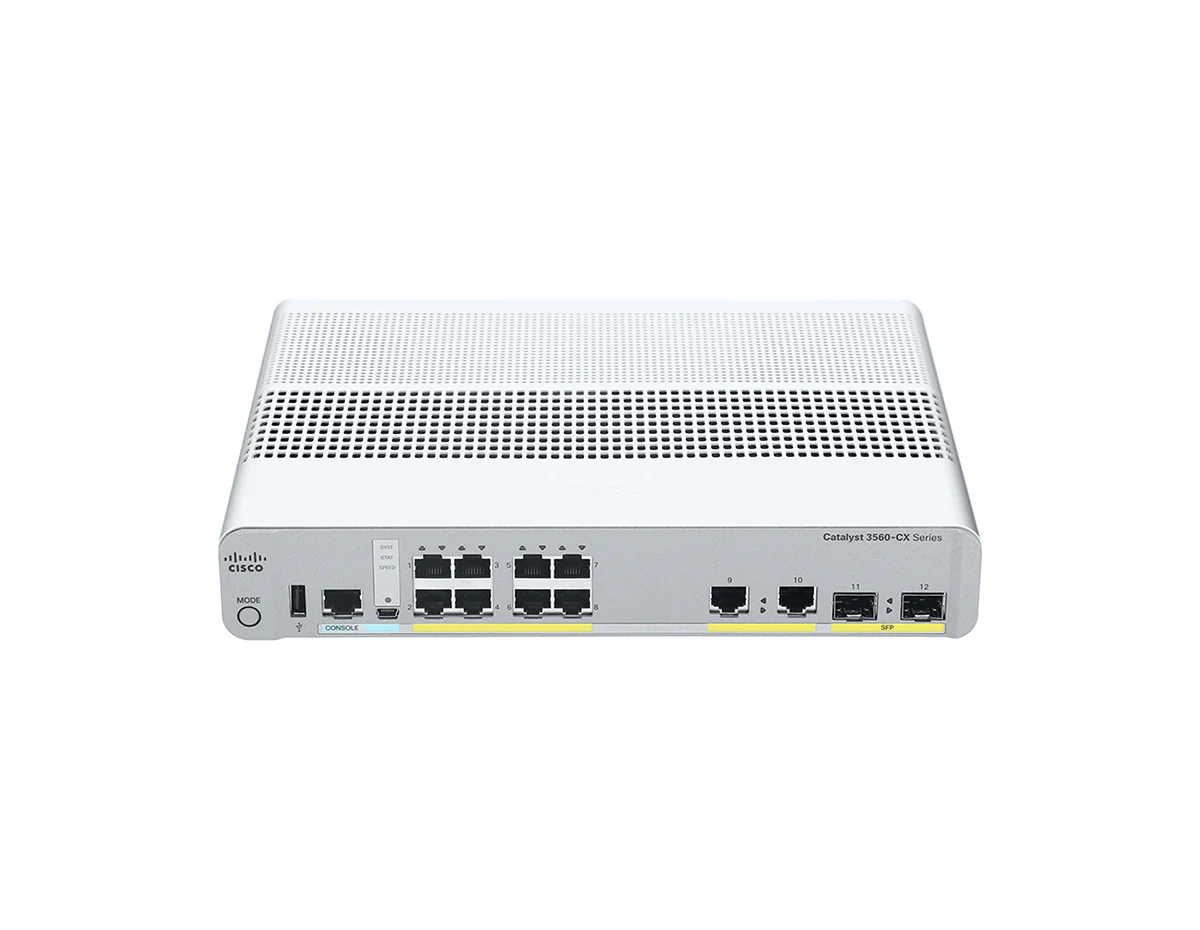

Cisco Catalyst WS-C3560CX-8PC-S Switch

The Cisco Catalyst WS-C3560CX-8PC-S Switch provides a compact and high-performance networking solution for small to medium-sized businesses and branch offices. Featuring 8 PoE+ Gigabit Ethernet ports and 2 SFP uplinks, this fanless switch supports advanced Layer 3 IP Base software for reliable and scalable network management. Its Power over Ethernet Plus (PoE+) capability delivers up to 240W of power for connected devices like IP phones, wireless access points, and cameras, all while maintaining energy-efficient operation.

Key Features:

• 8 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, with a total power budget of 240W for PoE-enabled devices.
• 2 x 1G SFP Uplinks: Offers high-speed fiber connectivity for network expansion.

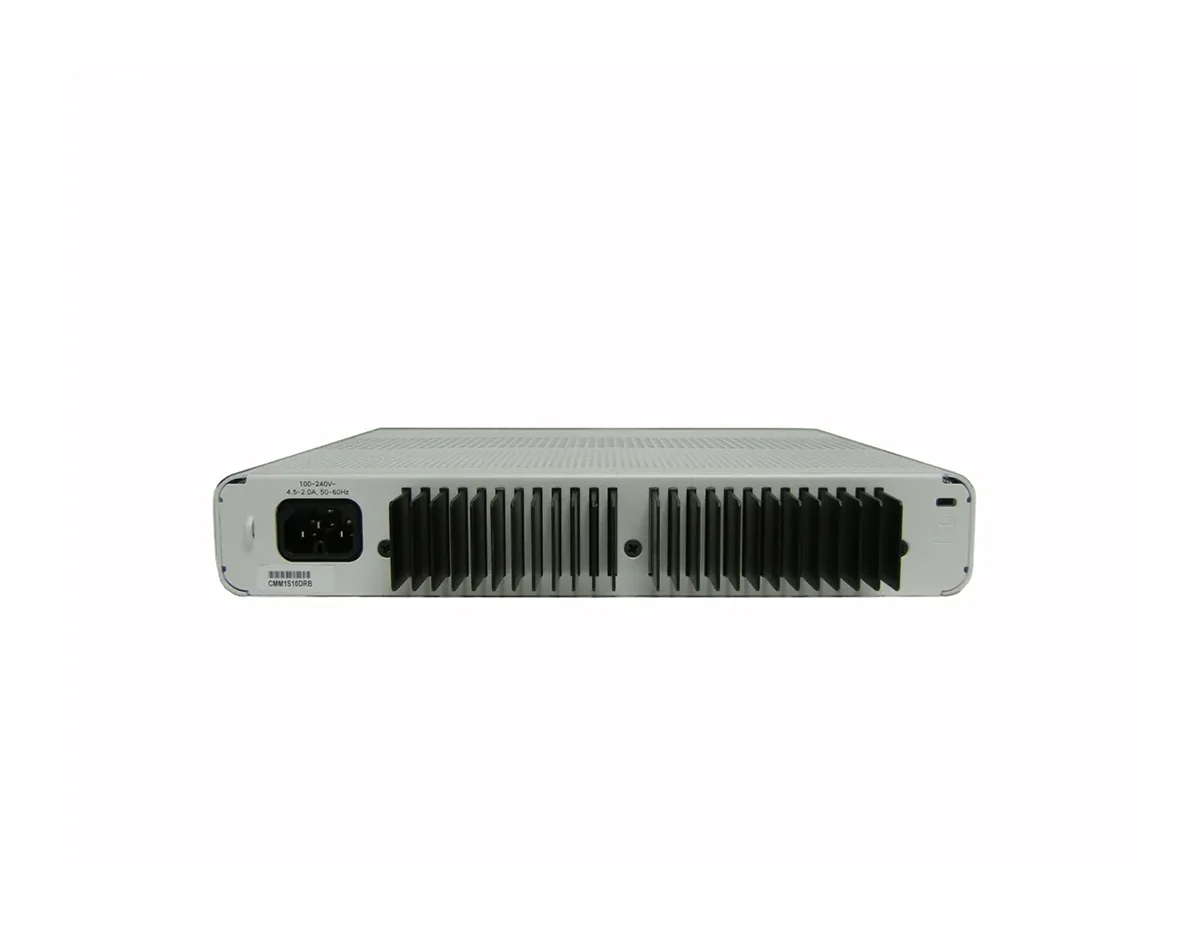

• Silent Fanless Design: Ensures quiet operation, perfect for office environments.
• Layer 3 IP Base: Supports advanced routing protocols like OSPF, EIGRP, and VRF-Lite for enhanced network management.
• Energy-Efficient: Complies with IEEE 802.3az standards, minimizing power consumption.

Technical Overview:

• Recommended for: Offices, small to medium-sized businesses, and branch networks.
• Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
• Uplink Modules: 2 x 1G SFP uplinks.
• Switching Capacity: 32 Gbps.
• Forwarding Rate: 17.9 Mpps.
• Layer 3 Features: OSPF, EIGRP, VRF-Lite.
• Management: Web UI, CLI, SNMP, and Cisco DNA Center.
• Licensing: IP Base.
• Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.

You can check the related tab for the WS-C3560CX-8PC-S datasheet.
