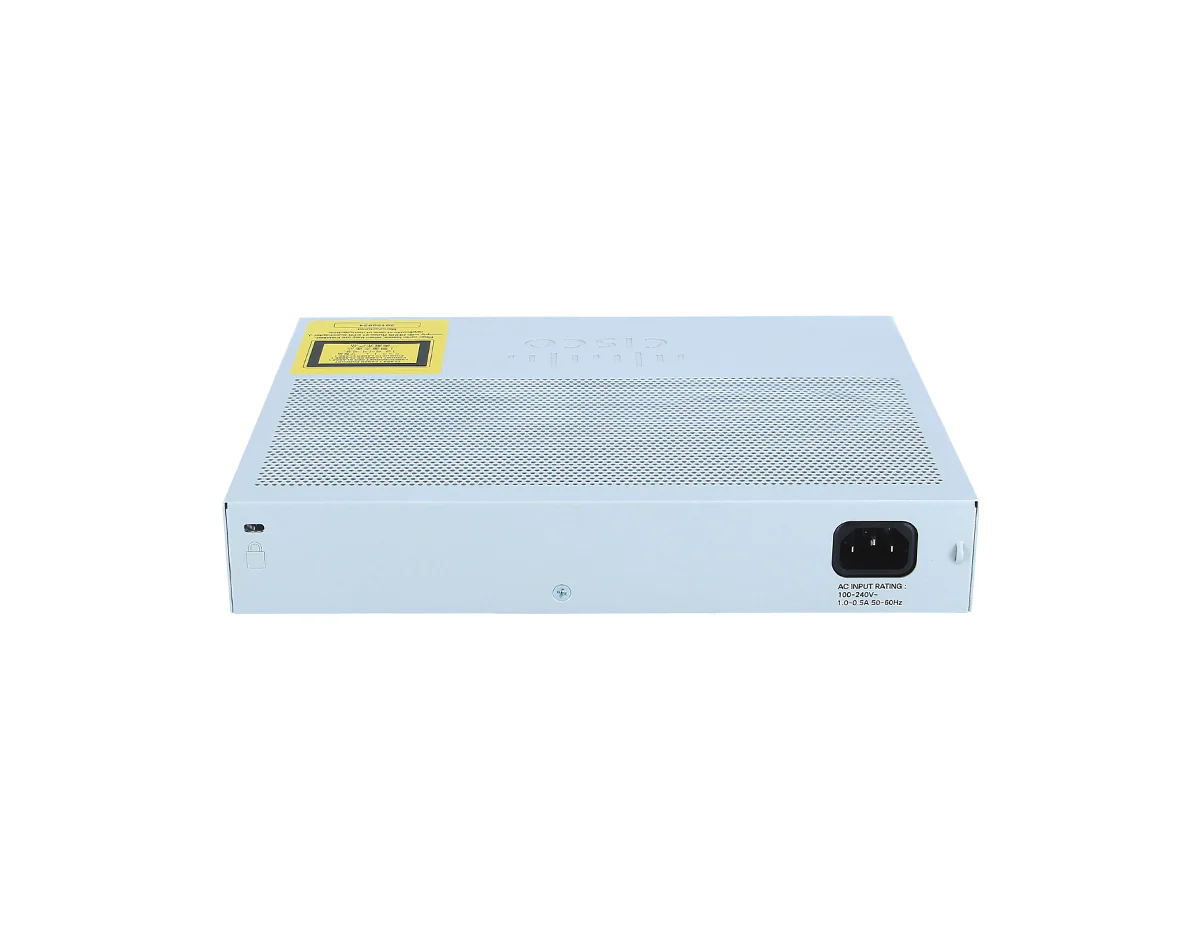

Cisco WS-C2960L-8TS-LL Switch
[shortdesc]
- Managed, Fanless, 8 x 1G ports, Fixed Uplinks (2 x 1G SFP), No PoE (Data Only), Layer 2
[properties]
| Properties | WS-C2960L-8TS-LL |
| Description | 8 port 10/100/1000 Ethernet ports, 2 x 1G SFP |
| Product Family | Catalyst 2960-L |
| Product Type | Ethernet Switch |
| Number of Ports | 8 |
| Uplink Interfaces | 2 SFP |
| Available PoE power | No |
| Fanless | Yes |
| Dimensions in. | 1.73 x 8.45 x 10.56 |
[/properties]
[specifications]
| Specifications | WS-C2960L-8TS-LL |
| Console Ports | 1x RJ45 Ethernet 1x USB mini-B USB-A port for storage and Bluetooth console |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| Forwarding Bandwidth | 10 Gbps |
| Switching Bandwidth | 20 Gbps |
| MAC addresses | 16000 |
| Maximum Active VLANs | 256 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5 to 45 degree C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5 to 40 deg C |
| Safety | UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 |
| EMC: emissions | 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A |
| EMC: immunity | EN55024 CISPR24 EN300386 KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications | USGv6 and IPv6 Ready Logo |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH | Yes |
| TACACS, TACACS+, Radius | Yes |
[/specifications]
[accesories]
| Part Number | Description |
| CAB-CONSOLE-RJ45 | Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB | Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP | Power Cable Restraining Clip |
| CMPCT-MGNT-TRAY | Magnetic Mounting Tray for 3560-CX, 2960-CX, and 2960-L Compact Switches |
| CMPCT-CBLE-GRD | Cable Guard for 3560-CX, 2960-CX, and 2960-L Compact Switches |
| CMPCT-DIN-MNT | DIN Rail Mount for 3560-CX, 2960-CX, and 2960-L Compact Switches |
[/accesories]
Cisco Catalyst WS-C2960L-8TS-LL Switch
The Cisco Catalyst WS-C2960L-8TS-LL Switch is a compact, energy-efficient switch designed for small to medium-sized businesses or branch offices. With 8 Gigabit Ethernet ports and 2 SFP uplinks, this Layer 2 switch is ideal for applications that require reliable performance and simple management. The fanless design ensures quiet operation, making it suitable for office environments where noise levels are a concern.
Key Features:
- 8 x Gigabit Ethernet Ports: Provides fast, reliable connectivity for multiple devices.
- 2 SFP Uplinks: Offers flexibility with fiber connections for network expansion.
- Fanless Design: Silent operation ideal for noise-sensitive environments.
- Enhanced Security: Includes 802.1X, BPDU Guard, and ACLs for securing the network.
- Energy-Efficient Operation: Supports IEEE 802.3az standards, minimizing power usage.
Technical Overview:
- Recommended for: Small businesses, branch offices, and retail environments.
- Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Uplink Modules: 2 x 1G SFP uplinks.
- Switching Capacity: 10 Gbps.
- Forwarding Rate: 14.88 Mpps.
- Layer 2 Features: VLANs, Static Routing, and ACLs.
- Management: Web-based UI, CLI, SNMP, and Cisco DNA.
- Licensing: LAN Lite.
- Energy Efficiency: Complies with IEEE 802.3az for energy-saving operation.
You can check the related tab for the WS-C2960L-8TS-LL datasheet.
